Anchor Points

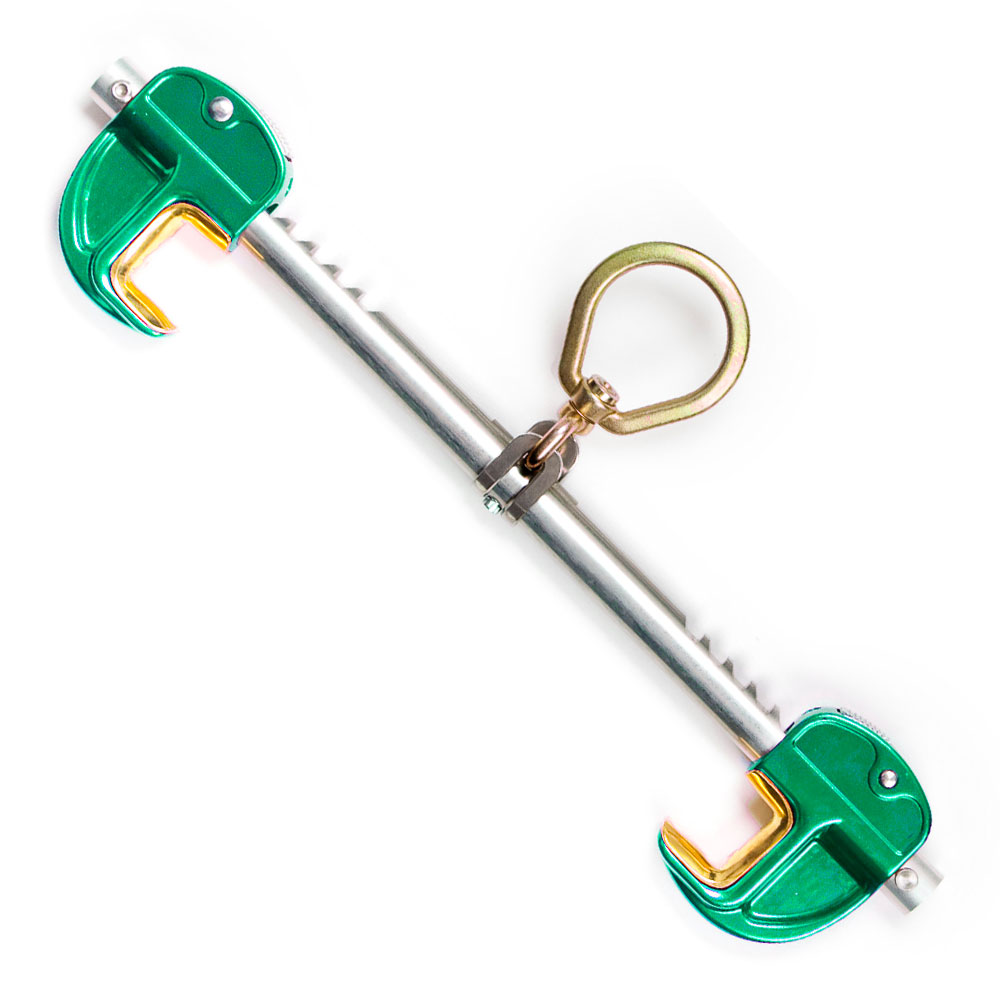

Sliding Beam Anchor
Super Slider 5,000 lb. Beam Anchor. A removable and reusable sliding I-beam anchor. Easy to install and remove. This anchor connector is designed to easily glide along the beam while trailing the worker. Adjustable from 3”-12” with a minimum flange thickness of 1/4”. Meets or Exceeds ANSI Z359.1-2007, OSHA 1926.502.
Key Features

• STRENGTH: ​5000 lbs.UTS:5,000-lbf / 22kN
• MAX USER WEIGHT: 310-lbs. / 140kg
• WORKING LOAD: 1000-lbs. / 454kg
• MATERIAL:
  • Aluminum / Yellow Chromate Steel
  • Paw: Aluminum
  • Support Bar : Aluminum
  • Swivel : Zinc Plated Steel
  • Swivel Mount : Stainless Steel
  • Paw Inserts : Bronze
• APPLICATION: I & H Beams
• LOADING: 5,000-lbf (22kN)
• WEIGHT: 3.52 lbs. / 1596g

CONFORM TO NORM: Meets or exceeds ANSI Z359.1-2007, OSHA 1926.502

---

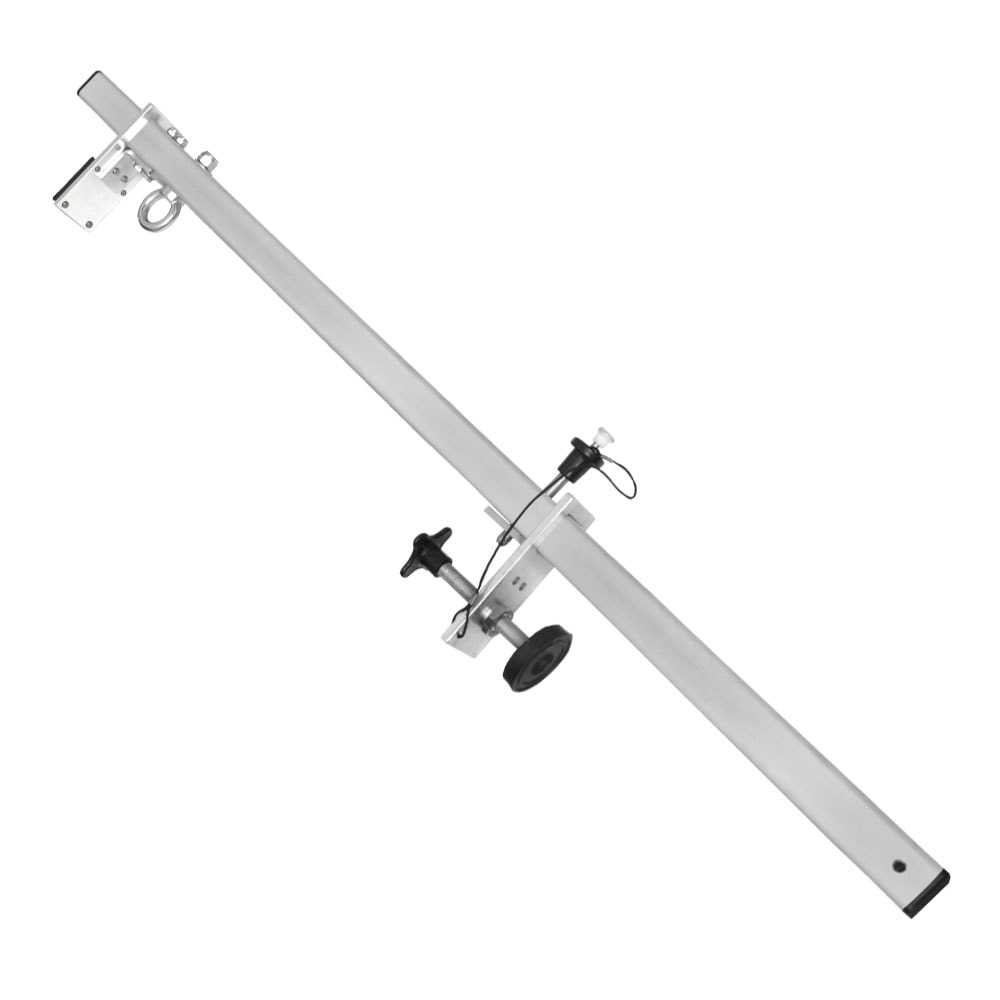

​Door Jamb Anchor
Door Jamb Anchor, Aluminum construction. Min breaking strength 5000 lbs. Meets or exceeds ANSI Z359.1-2007.

Key Features
DESIGN:

• Door/window anchor is compressed against the door or window frame “jamming” itself between the two vertical sides.
• Made up of high strength aluminum alloy.
• Light weight & portable.

MINIMUM OPENING:
23.62”
MAXIMUM OPENING:
49.21”
MATERIAL:
High strength aluminum alloy
FINISH:
Anodized
MINIMUM BREAKING STRENGTH:
5000 lbs.
CONFORM TO THE NORM:
Meets or exeeds ANSI Z359.1-2007
WEIGHT:
12.47 lbs. ± 0.53 lbs.
MINIMUM BREAKING STRENGTH:
5000 lbs.

---

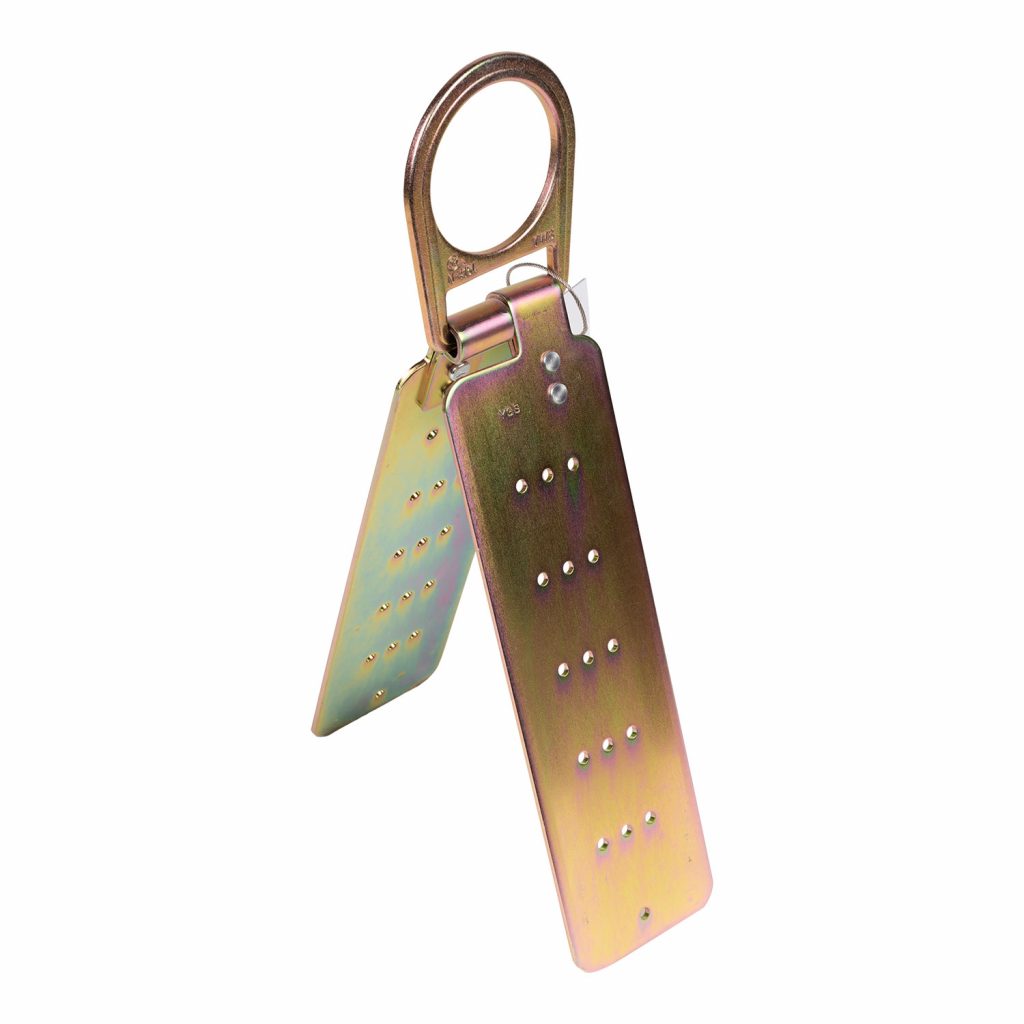

Reusable Rood Anchor A00150
Galvanized Steel with stamped D-ring. Min breaking strength 5000 lbs. Perfect for mounting your lifeline to the peak of a slopped roof. An ideal anchorage device to be fixed on wooden beams used in roofing. The D-ring can be safely used as an anchor point. Consists of two steel flaps each having 16 holes which can be fitted on the two sides of a wooden beam by means of nails inserted in the holes.

• High Strength Alloy Steel
• Powder coated or Zinc plated
• 5000lbs breaking strength
• Only 2.39lbs
• Meets or Exceeds ANSI Z359.18-2017.

---
