Scaffolding Safety Guard Rail Systems

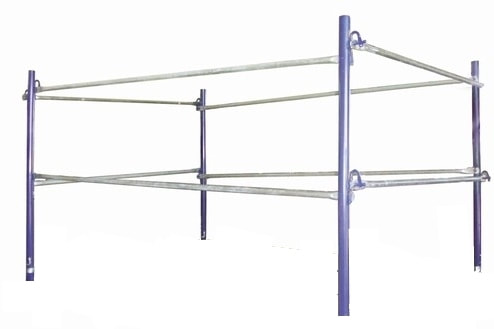

A complete Guard System consists of Guard Rail post and Guard Railing to surround the scaffold so no-one walks off the scaffold. The picture below illustrates a 4 post set with top rail and mid rail to enclose the scaffold safely. In some instances and location, A Toe Board system can be used at the bottom of the guard rail system to ensure nothing rolls off the platform. Check with your local codes to see if a toe board system is required to make sure you are in compliance.
Punch Hole Steel GUARD RAIL
Steel Guard Rail
|
StepUp Scaffold's Commercial & Residential Guard Rail Scaffolding meet all scaffolding industry standards. Our Scaffolding Guard Rails can handle any Commercial & Residential construction project and are compatible with most common frame scaffolds in the scaffolding market. This makes StepUp Scaffolding's Guard Rail scaffolding one of the most used and recognized Guard Rail scaffolding for sale in the scaffolding market today.
|
| Part # | Description | Tube | Weight (LBS) |
|---|---|---|---|
| GR2 | Guard Rail - 2' | 1" | 1.74 |
| GR3 | Guard Rail - 3' | 1" | 2.53 |
| GR4 | Guard Rail - 4' | 1" | 3.30 |
| GR5 | Guard Rail - 5' | 1" | 4.08 |
| GR6 | Guard Rail - 6' | 1" | 4.85 |
| GR7 | Guard Rail - 7' | 1" | 7.20 |
| GR8 | Guard Rail - 8' | 1" | 6.25 |
| GR10 | Guard Rail - 10' | 1" | 10.65 |
Guard Rail Post
|
StepUp Scaffold’s Commercial & Residential Guard Rail Post Scaffoldings meet all scaffolding industry standards. Our Guard Rail Post can handle any Commercial & Residential construction project and are compatible with most common frame scaffolds in the scaffolding market.
|
|
End Rail Panel
|
For use on 5' wide Walk-Thru Scaffold Frames ONLY!
Hooks onto rungs of 5' Wide Walk-Thru Scaffold Frames. Prevents workers from falling from through the end Scaffold Frame. Each hook has a drilled hole for inserting a Toggle Pin (to lock in place). Powder coated finish to prevent rust and protect from scratches. Meets OSHA's requirement for Fall Protection and Guard Rails. Ideal for Stair Towers using 5' Wide Walk-Thru Frames (prevents workers from stepping backwards off landing and falling!). Also known as a "Walk-Off" and a "Man-Saver." |
