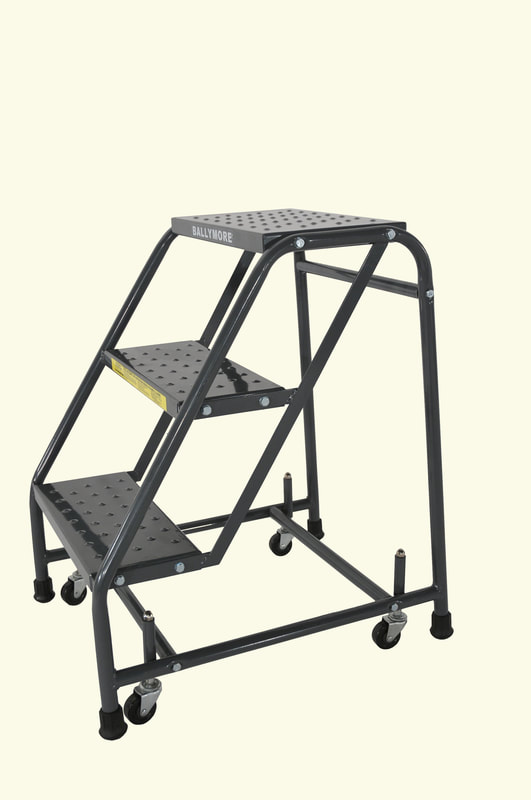

Standard Rolling Ladders with Spring Loaded Casters
|
500 lb. capacity
• Working heights up to 12’ • Spring loaded swivel casters retract under user’s weight • 7” deep steps with 10” deep top step on 1 - 4 step models shown with (*) in the chart below • 14” deep top step on 4 - 7 step FSH models • Specify tread type when ordering • 1 - 4 step ladders (*) ship unassembled in a box, and are eligible for UPS shipping • 4 -7 step FSH models ship unassembled • Specify set-up (SU) if required*** • Available in all welded construction • Gray powder coat finish • Built to OSHA and ANSI standards • CAL OSHA available |
Steps Including Top Step |
Height Inches | 16" Wide Step | 24" Wide Step |
|||||
|---|---|---|---|---|---|---|---|---|
| Top Step | Overall | Model # | Base W" x L" | Weight (LBS) | Model # | Base W" x L" | Weight (LBS) | |
| No Handrails | ||||||||
| 1 Step | 12 | 12 | 118 | 18 x 16 | 18 | 126 | 26 x 16 | 20 |
| 2 Step | 19 | 19 | 218 | 20 x 19 | 22 | 226 | 30 x 19 | 28 |
| 3 Step | 28.5 | 28.5 | 318 | 20 x 25 | 31 | 326 | 30 x 25 | 36 |
| 4 Step | 38 | 38 | 418 | 20 x 31 | 42 | 426 | 30 x 31 | 51 |
| With Handrails | ||||||||
| 2 Step | 19 | 49 | H218 | 20 x 19 | 36 | H226 | 30 x 19 | 42 |
| 3 Step | 28.5 | 58.5 | H318 | 20 x 25 | 45 | H326 | 30 x 25 | 50 |
| 4 Step | 38 | 68 | H418 | 20 x 31 | 56 | H426 | 30 x 31 | 65 |
| 4 Step | 40 | 73 | FSH418 | 20 x 35 | 68 | FSH426 | 30 x 35 | 80 |
| 5 Step | 50 | 83 | FSH518 | 20 x 42 | 75 | FSH526 | 30 x 42 | 87 |
| 6 Step | 60 | 93 | FSH618 | 24 x 49 | 83 | FSH626 | 30 x 49 | 98 |
| 7 Step | 70 | 103 | FSH718 | 24 x 56 | 89 | FSH726 | 30 x 56 | 108 |
